Learn how the GEARBOX works
The Gearbox is an interactive puzzle kit to help learn and better understand the working and principles of a 4- speed manual Gearbox.
A mechanical gearbox is a reducer that provides speed and torque conversions from a motor to the driving wheels.

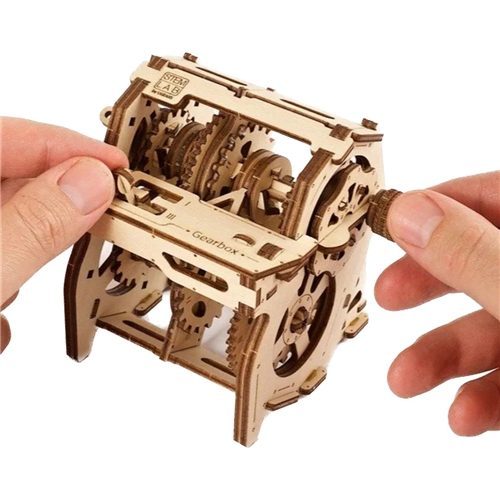

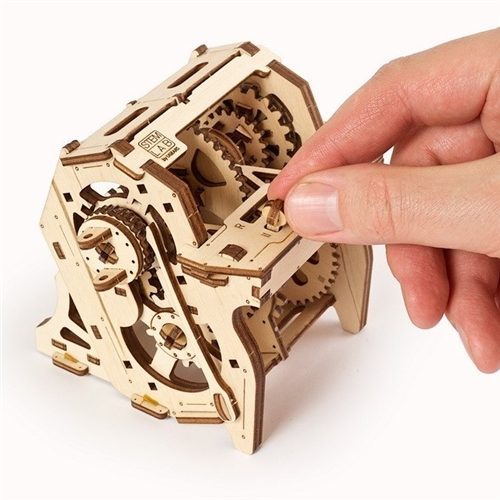

After assembly, you can experiment with the Ugears manual Gearbox, by turns, choose I, II, III, or reverse with a kinematic pair of gears with different ratios and, rotating the actuator handle clock-wise, you can watch and control the rotation speed of the layshaft and drive shaft. In the Position “N” – idle in which both clutch gears of layshaft remain uncoupled and idling; the First Gear makes the layshaft and gears rotate with the lowest speed; the Second Gear lets the drive shaft along with the flywheel rotate with an average speed and the Third Gear allows the layshaft and all gears rotate with the highest speed. Switch on the Reverse gear and see how the driving clutch gear moves to the left towards gear “R” and connects to it transferring the rotation to the lower gear arrangement and propelling the layshaft and all gears to rotate in reverse.
The invention of the gearbox belongs to the famous German engineer Karl Benz.
A gearbox is mainly used in the automobile industry as a part of the car transmission mechanism that transfers torque from the engine’s shaft to the wheels.
Model Size: 13*10*11 cm
Number of components: 120
Estimated time of assembly: 1-2 hour
Ages: 8+
Assembling and discovering Ugears models is a smart and engaging hobby for grown-ups and kids of all ages. All Ugears models are made of sustainably sourced wood and require neither glue nor special tools to be fully assembled into functional working models. Also, there is no need for batteries or any external power source as they are powered by rubber bands, gears, cranks and gravity.
Each Ugears model is not just a construction kit but an incarnate IDEA of a PERFECT mechanism. Putting them together, you bring the idea to life.
This model is only one of many that we stock in our Ugears Model Kits range from Ugears Australia. This range is also part of our STEM Engineering & Construction collection, which has even more building kits for you to choose from.
